Complete examples

This section contains complete, self-contained example codes that can be copied and run directly.

Simple energy computation

In this example, a simple potential energy defined as the sum of the inverse of the distance between the particles is computed.

using CellListMap
using StaticArrays
system = ParticleSystem(
    xpositions = rand(SVector{3,Float64},1000),
    unitcell=[1.0,1.0,1.0],
    cutoff = 0.1,
    output = 0.0,
    output_name = :energy
)
pairwise!((pair, energy) -> energy += 1 / pair.d, system)
println(" Energy: $(system.energy)")

 Energy: 32406.72271417392

Force computation

Here we compute the force vector associated to the potential energy function of the previous example.

using CellListMap
using StaticArrays
positions = rand(SVector{3,Float64},1000)
system = ParticleSystem(
    xpositions = positions,
    unitcell=[1.0,1.0,1.0],
    cutoff = 0.1,
    output = similar(positions),
    output_name = :forces
)
function update_forces!(pair, forces)
    (; x, y, i, j, d2, d) = pair
    df = (1/d2)*(1/d)*(y - x)
    forces[i] += df
    forces[j] -= df
    return forces
end
pairwise!(update_forces!, system)
println("""
    Force on particle 1: $(system.forces[1]))
    Force on particle 2: $(system.forces[1]))
""")

    Force on particle 1: [575.5872265211384, -72.4462138141867, -579.8128669529415])
    Force on particle 2: [575.5872265211384, -72.4462138141867, -579.8128669529415])

Energy and forces

In this example, the potential energy and the forces are computed in a single run, and a custom data structure is defined to store both values.

using CellListMap
using StaticArrays
# Define custom type to store energy and force vector
mutable struct EnergyAndForces
    energy::Float64
    forces::Vector{SVector{3,Float64}}
end
# Custom copy, reset and reducer functions
import CellListMap: copy_output, reset_output!, reducer
copy_output(x::EnergyAndForces) = EnergyAndForces(copy(x.energy), copy(x.forces))
function reset_output!(x::EnergyAndForces)
    x.energy = 0.0
    fill!(x.forces, SVector(0.0, 0.0, 0.0))
    return x
end
function reducer(x::EnergyAndForces, y::EnergyAndForces)
    x.energy += y.energy
    x.forces .+= y.forces
    return x
end
# Function that updates energy and forces for each pair
function energy_and_forces!(pair, output::EnergyAndForces)
    (; i, j, x, y, d2, d) = pair
    output.energy += 1/d
    df = (1/d2)*(1/d)*(y - x)
    output.forces[i] += df
    output.forces[j] -= df
    return output
end
# Initialize system
positions = rand(SVector{3,Float64},1000);
system = ParticleSystem(
    xpositions = positions,
    unitcell=[1.0,1.0,1.0],
    cutoff = 0.1,
    output = EnergyAndForces(0.0, similar(positions)),
    output_name = :energy_and_forces
)
# Compute energy and forces
pairwise!(energy_and_forces!, system)
# Print some results
println("""
    Energy: $(system.energy_and_forces.energy)
    Force on particle 1: $(system.energy_and_forces.forces[1])
""")

    Energy: 31347.09812479539
    Force on particle 1: [-318.76453802950005, -533.3935634268712, 57.75321711834704]

Two sets of particles

In this example we illustrate the interface for the computation of properties of two sets of particles, by computing the minimum distance between the two sets.

using CellListMap
using StaticArrays
# Custom structure to store the minimum distance pair
struct MinimumDistance
    i::Int
    j::Int
    d::Float64
end
# Function that updates the minimum distance found
function minimum_distance(pair, md)
    (; i, j, d) = pair
    md = d < md.d ? MinimumDistance(i, j, d) : md
    return md
end
# Define appropriate methods for copy, reset and reduce
import CellListMap: copy_output, reset_output!, reducer!
copy_output(md::MinimumDistance) = md
reset_output!(::MinimumDistance) = MinimumDistance(0, 0, +Inf)
reducer!(md1::MinimumDistance, md2::MinimumDistance) = md1.d < md2.d ? md1 : md2
# Build system
xpositions = rand(SVector{3,Float64},100);
ypositions = rand(SVector{3,Float64},1000);
system = ParticleSystem(
       xpositions = xpositions,
       ypositions = ypositions,
       unitcell=[1.0,1.0,1.0],
       cutoff = 0.1,
       output = MinimumDistance(0,0,+Inf),
       output_name = :minimum_distance,
)
# Compute the minimum distance
pairwise!(minimum_distance, system)

Main.MinimumDistance(71, 564, 0.009046123325671266)

Particle simulation

In this example, a complete particle simulation is illustrated, with a simple potential. This example can illustrate how particle positions and forces can be updated. Run this simulation with:

julia> trajectory = simulate(200) # 200 particles

julia> animate(trajectory)

Forces are computed similarly to what is done in the Force computation example. Additionally, we use the public (but not exported) CellListMap.wrap_relative_to function, to keep the saved coordinates within the minimal periodic coordinates relative to the origin, to produce a nice animation at the end.

using StaticArrays
using CellListMap
import CellListMap.wrap_relative_to
# Function that updates the forces, for potential of the form:
# if d < cutoff k*(d^2-cutoff^2)^2 else 0.0 with k = 10^6
function update_forces!(pair, forces, cutoff)
    (;i, j, x, y, d2) = pair
    r = y - x
    dudr = 10^6 * 4 * r * (d2 - cutoff^2)
    forces[i] += dudr
    forces[j] -= dudr
    return forces
end
function simulate(N; nsteps::Int=100, isave=1)
    # initial velocities
    velocities = randn(SVector{2,Float64}, N)
    # Initial positions
    positions = rand(SVector{2,Float64}, N)
    # force array
    forces = zeros(SVector{2,Float64}, N)
    # initialize ParticleSystem
    system = ParticleSystem(
        positions=positions,
        cutoff=0.1,
        unitcell=[1.0, 1.0],
        output=forces,
        output_name=:forces,
    )
    dt = 1e-3
    trajectory = typeof(positions)[]
    for step in 1:nsteps
        # compute forces at this step
        pairwise!(
            (pair, forces) -> update_forces!(pair, forces, system.cutoff),
            system
        )
        # Update positions and velocities
        for i in eachindex(positions, velocities, system.forces)
            f = system.forces[i]
            x = positions[i]
            v = velocities[i]
            x = x + v * dt + (f / 2) * dt^2
            v = v + f * dt
            # wrapping to origin for obtaining a pretty animation
            x = wrap_relative_to(x, SVector(0.0, 0.0), system.unitcell)
            # update positions and velocities
            positions[i] = x
            velocities[i] = v
        end
        # Update ParticleSystem positions
        update!(system; positions=positions)
        # Save step for printing
        if step % isave == 0
            push!(trajectory, copy(positions))
        end
    end
    return trajectory
end

simulate (generic function with 1 method)

The following function will create an animation from the resulting trajectory of the simulation:

using Plots
function animate(trajectory)
    anim = @animate for step in trajectory
        scatter(
            Tuple.(step),
            label=nothing,
            lims=(-0.5, 0.5),
            aspect_ratio=1,
            framestyle=:box,
            size=(400,400),
            ticks=nothing,
        )
    end
    gif(anim, "simulation.gif", fps=10)
end

animate (generic function with 1 method)

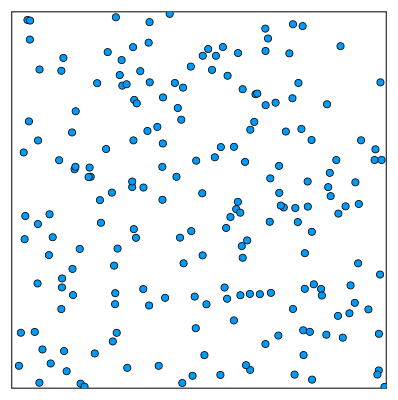

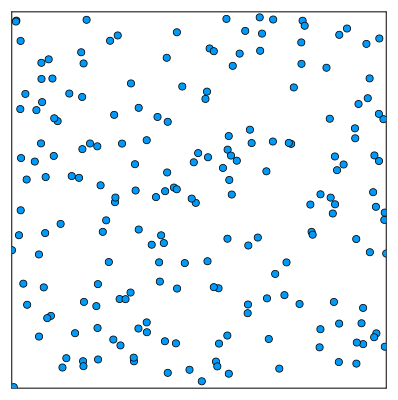

Now, running the simulation and creating an animation:

trajectory = simulate(200) # 200 particles
animate(trajectory)
