# Low level interface

Since version `0.8.30`

we strongly encourage the use of the `ParticleSystem`

interface. Yet, the low level interface is still available. To use it, load the package as usual:

`using CellListMap`

## Examples

The full code of the examples described here is available at the examples directory.

- Mean difference of coordinates
- Histogram of distances
- Gravitational potential
- Gravitational force
- Nearest neighbor
- Implementing Neighbor lists

### Mean difference of coordinates

Computing the mean difference in `x`

position between random particles. The closure is used to remove the indexes and the distance of the particles from the parameters of the input function, as they are not needed in this case.

```
using CellListMap
# System properties
N = 100_000
sides = [250,250,250]
cutoff = 10
# Particle positions
x = [ sides .* rand(3) for i in 1:N ]
# Initialize linked lists and box structures
box = Box(sides,cutoff)
cl = CellList(x,box)
# Function to be evaluated from positions
f(x,y,sum_dx) = sum_dx + abs(x[1] - y[1])
normalization = N / (N*(N-1)/2) # (number of particles) / (number of pairs)
# Run calculation (0.0 is the initial value)
avg_dx = normalization * map_pairwise(
(x,y,i,j,d2,sum_dx) -> f(x,y,sum_dx), 0.0, box, cl
)
```

The example above can be run with `CellListMap.Examples.average_displacement()`

and is available in the average_displacement.jl file.

### Histogram of distances

Computing the histogram of the distances between particles (considering the same particles as in the above example). Again, we use a closure to remove the positions and indexes of the particles from the function arguments, because they are not needed. The distance, on the other side, is needed in this example:

```
# Function that accumulates the histogram of distances
function build_histogram!(d2,hist)
d = sqrt(d2)
ibin = floor(Int,d) + 1
hist[ibin] += 1
return hist
end;
# Initialize (and preallocate) the histogram
hist = zeros(Int,10);
# Run calculation
map_pairwise!(
(x,y,i,j,d2,hist) -> build_histogram!(d2,hist),
hist,box,cl
)
```

Note that, since `hist`

is mutable, there is no need to assign the output of `map_pairwise!`

to it.

The example above can be run with `CellListMap.Examples.distance_histogram()`

and is available in the distance_histogram.jl file.

### Gravitational potential

In this test we compute the "gravitational potential", assigning to each particle a different mass. In this case, the closure is used to pass the masses to the function that computes the potential.

```
# masses
const mass = rand(N)
# Function to be evaluated for each pair
function potential(i,j,d2,mass,u)
d = sqrt(d2)
u = u - 9.8*mass[i]*mass[j]/d
return u
end
# Run pairwise computation
u = map_pairwise((x,y,i,j,d2,u) -> potential(i,j,d2,mass,u),0.0,box,cl)
```

The example above can be run with `CellListMap.Examples.gravitational_potential()`

and is available in the gravitational_potential.jl file.

### Gravitational force

In the following example, we update a force vector of for all particles.

```
# masses
const mass = rand(N)
# Function to be evaluated for each pair: update force vector
function calc_forces!(x,y,i,j,d2,mass,forces)
G = 9.8*mass[i]*mass[j]/d2
d = sqrt(d2)
df = (G/d)*(x - y)
forces[i] = forces[i] - df
forces[j] = forces[j] + df
return forces
end
# Initialize and preallocate forces
forces = [ zeros(SVector{3,Float64}) for i in 1:N ]
# Run pairwise computation
map_pairwise!(
(x,y,i,j,d2,forces) -> calc_forces!(x,y,i,j,d2,mass,forces),
forces,box,cl
)
```

The example above can be run with `CellListMap.Examples.gravitational_force()`

and is available in the gravitational_force.jl file.

The parallelization works by splitting the `forces`

vector in as many tasks as necessary, and each task will update an independent `forces`

array, which will be reduced at the end. Therefore, there is no need to deal with atomic operations or blocks in the `calc_forces!`

function above for the update of `forces`

, which is implemented as if the code was running serially. The same applies to other examples in this section.

### Nearest neighbor

Here we compute the indexes of the particles that satisfy the minimum distance between two sets of points, using the linked lists. The distance and the indexes are stored in a tuple, and a reducing method has to be defined for that tuple to run the calculation. The function does not need the coordinates of the points, only their distance and indexes.

```
# Number of particles, sides and cutoff
N1=1_500
N2=1_500_000
sides = [250,250,250]
cutoff = 10.
box = Box(sides,cutoff)
# Particle positions
x = [ SVector{3,Float64}(sides .* rand(3)) for i in 1:N1 ]
y = [ SVector{3,Float64}(sides .* rand(3)) for i in 1:N2 ]
# Initialize auxiliary linked lists
cl = CellList(x,y,box)
# Function that keeps the minimum distance
f(i,j,d2,mind) = d2 < mind[3] ? (i,j,d2) : mind
# We have to define our own reduce function here
function reduce_mind(output,output_threaded)
mind = output_threaded[1]
for i in 2:length(output_threaded)
if output_threaded[i][3] < mind[3]
mind = output_threaded[i]
end
end
return mind
end
# Initial value
mind = ( 0, 0, +Inf )
# Run pairwise computation
mind = map_pairwise(
(x,y,i,j,d2,mind) -> f(i,j,d2,mind),
mind,box,cl;reduce=reduce_mind
)
```

The example above can be run with `CellListMap.Examples.nearest_neighbor()`

and is available in the nearest_neighbor.jl file.

The example `CellListMap.Examples.nearest_neighbor_nopbc()`

of nearest_neighbor_nopbc.jl describes a similar problem but *without* periodic boundary conditions. Depending on the distribution of points and size it is a faster method than usual ball-tree methods.

### Implementing Neighbor lists

The implementation of the `CellLIstMap.neighborlist`

(see Neighbor lists) is as follows: The empty `pairs`

output array will be split in one vector for each thread, and reduced with a custom reduction function.

```
# Function to be evaluated for each pair: push pair
function push_pair!(i,j,d2,pairs)
d = sqrt(d2)
push!(pairs,(i,j,d))
return pairs
end
# Reduction function
function reduce_pairs(pairs,pairs_threaded)
for i in eachindex(pairs_threaded)
append!(pairs,pairs_threaded[i])
end
return pairs
end
# Initialize output
pairs = Tuple{Int,Int,Float64}[]
# Run pairwise computation
map_pairwise!(
(x,y,i,j,d2,pairs) -> push_pair!(i,j,d2,pairs),
pairs,box,cl,
reduce=reduce_pairs
)
```

The full example can be run with `CellListMap.Examples.neighborlist()`

, available in the file neighborlist.jl.

## Periodic boundary conditions

- Orthorhombic periodic boundary conditions
- Triclinic periodic boundary conditions
- Without periodic boundary conditions

### Orthorhombic periodic boundary conditions

Orthorhombic periodic boundary conditions allow some special methods that are faster than those for general cells. To initialize an Orthorhombic cell, just provide the length of the cell on each side, and the cutoff. For example:

```
julia> box = Box([100,70,130],12)
Box{OrthorhombicCell, 3, Float64, 9}
unit cell matrix: [100.0 0.0 0.0; 0.0 70.0 0.0; 0.0 0.0 130.0]
cutoff: 12.0
number of computing cells on each dimension: [10, 7, 12]
computing cell sizes: [12.5, 14.0, 13.0] (lcell: 1)
Total number of cells: 840
```

### Triclinic periodic boundary conditions

Triclinic periodic boundary conditions of any kind can be used. However, the input has some limitations for the moment. The lattice vectors must have strictly positive coordinates, and the smallest distance within the cell cannot be smaller than twice the size of the cutoff. An error will be produced if the cell does not satisfy these conditions.

Let us illustrate building a two-dimensional cell, for easier visualization. A matrix of column-wise lattice vectors is provided in the construction of the box, and that is all.

Here, the lattice vectors are `[1,0]`

and `[0.5,1]`

(and we illustrate with `cutoff=0.1`

):

```
julia> box = Box([ 1.0 0.5
0.0 1.0 ], 0.1);
julia> x = 10*rand(SVector{2,Float64},1000);
```

We have created random coordinates for `1000`

particles, that are not necessarily wrapped according to the periodic boundary conditions. We can see the coordinates in the minimum image cell with:

```
julia> using Plots

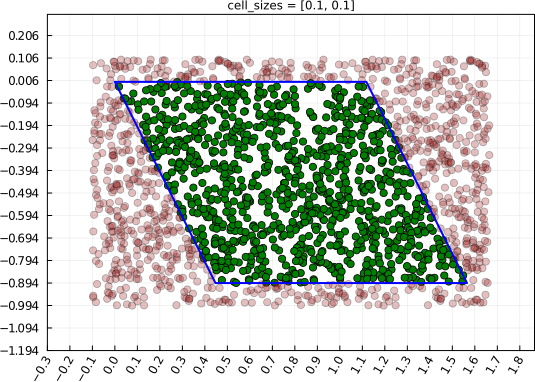

julia> CellListMap.draw_computing_cell(x,box)
```

The construction of the cell list is, as always, done with:

```
julia> cl = CellList(x,box)
CellList{2, Float64}
109 cells with real particles.
2041 particles in computing box, including images.
```

Upon construction of the cell lists, the cell is rotated such that the longest axis becomes oriented along the x-axis, and the particles are replicated to fill a rectangular box (or orthorhombic box, in three-dimensions), with boundaries that exceed the actual system size. This improves the performance of the pairwise computations by avoiding the necessity of wrapping coordinates on the main loop (these is an implementation detail only).

In summary, to use arbitrary periodic boundary conditions, just initialize the box with the matrix of lattice vectors. In three dimensions, for example, one could use:

```
julia> unitcell = [ 50. 0. 00.
0. 30. 30.
0. 00. 50. ]
julia> box = Box(unitcell, 2.)
julia> x = 100*rand(SVector{3,Float64},10000);
julia> p = [ CellListMap.wrap_to_first(x,unitcell) for x in x ];
julia> using Plots
julia> scatter(Tuple.(p),aspect_ratio=1,framestyle=:box,label=:none)
```

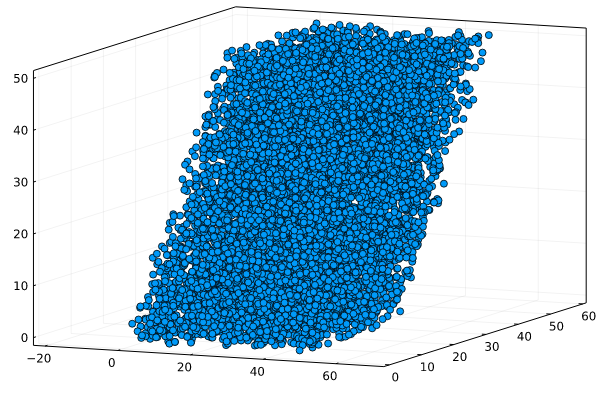

to work with an arbitrary 3D lattice, Which in this case looks like:

### Without periodic boundary conditions

To avoid the use of periodic boundary conditions it is enough to define an Orthorhombic box with lengths in each direction that are larger than the limits of the coordinates of the particles plus the cutoff. This can be done automatically with the `limits`

function. The box must be constructed with:

```
julia> x = [ [100,100,100] .* rand(3) for i in 1:100_000 ];
julia> box = Box(limits(x),12)
Box{NonPeriodicCell, 3}
unit cell matrix = [ 112.0, 0.0, 0.0; 0.0, 112.0, 0.0; 0.0, 0.0, 112.0 ]
cutoff = 12.0
number of computing cells on each dimension = [11, 11, 11]
computing cell sizes = [12.44, 12.44, 12.44] (lcell: 1)
Total number of cells = 1331
```

or, for computing the interaction between two disjoint sets of particles, call the `limits`

function with two arguments:

```
julia> x = [ [100,100,100] .* rand(3) for i in 1:100_000 ];
julia> y = [ [120,180,100] .* rand(3) for i in 1:100_000 ];
julia> box = Box(limits(x,y),12)
Box{NonPeriodicCell, 3}
unit cell matrix = [ 132.0, 0.0, 0.0; 0.0, 192.0, 0.0; 0.0, 0.0, 112.0 ]
cutoff = 12.0
number of computing cells on each dimension = [12, 17, 11]
computing cell sizes = [13.2, 12.8, 12.44] (lcell: 1)
Total number of cells = 2244
```

Note that the unit cell length is, on each direction, the maximum coordinates of all particles plus the cutoff. This will avoid the computation of pairs of periodic images. The algorithms used for computing interactions in Orthorhombic cells will then be used.

## Parallelization splitting and reduction

The parallel execution requires the splitting of the computation among tasks.

### How output is updated thread-safely

To allow general output types, the approach of `CellListMap`

is to copy the output variable the number of times necessary for each parallel task to update an independent output variables, which are reduced at the end. This, of course, requires some additional memory, particularly if the output being updated is formed by arrays. These copies can be preallocated, and custom reduction functions can be defined.

To control these steps, set manually the `output_threaded`

and `reduce`

optional input parameters of the `map_pairwise!`

function.

By default, we define:

`output_threaded = [ deepcopy(output) for i in 1:nbatches(cl) ]`

where `nbatches(cl)`

is the number of batches into which the computation will be divided. The number of batches is *not* necessarily equal to the number of threads available (an heuristic is used to optimize performance, as a function of the workload per batch), but can be manually set, as described in the **Number of batches** section below.

The default reduction function just assumes the additivity of the results obtained by each batch:

```
reduce(output::Number,output_threaded) = sum(output_threaded)
function reduce(output::Vector,output_threaded)
@. output = output_threaded[1]
for i in 2:length(output_threaded)
@. output += output_threaded[i]
end
return output
end
```

### Custom reduction functions

In some cases, as in the Nearest neighbor example, the output is a tuple and reduction consists in keeping the output from each thread having the minimum value for the distance. Thus, the reduction operation is not a simple sum over the elements of each threaded output. We can, therefore, overwrite the default reduction method, by passing the reduction function as the `reduce`

parameter of `map_pairwise!`

:

```
mind = map_pairwise!(
(x,y,i,j,d2,mind) -> f(i,j,d2,mind), mind,box,cl;
reduce=reduce_mind
)
```

where here the `reduce`

function is set to be the custom function that keeps the tuple associated to the minimum distance obtained between threads:

```
function reduce_mind(output,output_threaded)
mind = output_threaded[1]
for i in 2:length(output_threaded)
if output_threaded[i][3] < mind[3]
mind = output_threaded[i]
end
end
return mind
end
```

This function *must* return the updated `output`

variable, being it mutable or not, to be compatible with the interface.

Using the `length`

of the `output_threaded`

vector as the measure of how many copies of the array is available is convenient because it will be insensitive in changes in the number of batches that may be set.

### Number of batches

Every calculation with cell lists has two steps: the construction of the lists, and the mapping of the computation among the pairs of particles that satisfy the cutoff criterion.

The construction of the cell list is harder to parallelize, because assigning each particle to a cell is fast, such that the cost of merging a set of lists generated in parallel can be as costly as building the lists themselves. Therefore, it is frequent that it is not worthwhile (actually it is detrimental for performance) to split the construction of the cell lists in too many threads. This is particularly relevant for smaller systems, for which the cost of constructing the lists can be comparable to the cost of actually computing the mapped function.

At the same time, the homogeneity of the computation of the mapped function may be fast or not, homogeneous or not. These characteristics affect the optimal workload splitting strategy. For very large systems, or systems for which the function to be computed is not homogeneous in time, it may be interesting to split the workload in many tasks as possible, such that slow tasks do not dominate the final computational time.

Both the above considerations can be used to tunning the `nbatches`

parameter of the cell list. This parameter is initialized from a tuple of integers, defining the number of batches that will be used for constructing the cell lists and for the mapping of the computations.

By default, the number of batches for the computation of the cell lists is smaller than `nthreads()`

if the number of particles per cell is small. The default value by the internal function `CellListMap._nbatches_build_cell_lists(cl::CellList)`

.

The values assumed for each number of batches can bee seen by printing the `nbatches`

parameter of the cell lists:

```
julia> Threads.nthreads()
64
julia> x, box = CellListMap.xatomic(10^4) # random set with atomic density of water
julia> cl = CellList(x,box);
julia> cl.nbatches
NumberOfBatches
Number of batches for cell list construction: 8
Number of batches for function mapping: 32
```

The construction of the cell lists is performed by creating copies of the data, and currently does not scale very well. Thus, no more than 8 batches are used by default, to avoid delays associated to data copying and garbage collection. The number of batches of the mapping function uses an heuristic which currently limits somewhat the number of batches for small systems, when the overhead of spawning tasks is greater than the computation. Using more batches than threads for the function mapping is effective most times in avoiding uneven workload, but it may be a problem if the output to be reduced is too large, as the threaded version of the output contains `nbatches`

copies of the output.

Using less batches than the number of threads also allows the efficient use of nested multi-threading, as the computations will only use the number of threads required, leaving the other threads available for other tasks.

The number of batches is set *on the construction of the cell list*, using the `nbatches`

keyword parameter. For example:

```
julia> cl = CellList(x,box,nbatches=(1,4))
CellList{3, Float64}
1000000 real particles.
1000 cells with real particles.
1727449 particles in computing box, including images.
julia> cl.nbatches
NumberOfBatches
Number of batches for cell list construction: 1
Number of batches for function mapping: 4
```

fine tunning of the performance for a specific problem can be obtained by adjusting this parameter.

If the number of batches is set as zero for any of the two options, the default value is retained. For example:

```
julia> cl = CellList(x,box,nbatches=(0,4));
julia> cl.nbatches
NumberOfBatches
Number of batches for cell list construction: 8
Number of batches for function mapping: 4
julia> cl = CellList(x,box,nbatches=(4,0));
julia> cl.nbatches
NumberOfBatches
Number of batches for cell list construction: 4
Number of batches for function mapping: 64
```

The number of batches can also be retrieved from the cell list using the `nbatches`

function:

```
julia> cl = CellList(x,box,nbatches=(2,4));
julia> cl.nbatches
NumberOfBatches
Number of batches for cell list construction: 2
Number of batches for function mapping: 4
julia> nbatches(cl) # returns cl.nbatches.map_computation
4
julia> nbatches(cl,:map) # returns cl.nbatches.map_computation
4
julia> nbatches(cl,:build) # returns cl.nbatches.build_cell_lists
2
```

The call `nbatches(cl)`

is important for defining the number of copies of preallocated threaded output variables, as explained in the previous section.

## Performance tunning and additional options

- Preallocating the cell lists and cell list auxiliary arrays
- Preallocating threaded output auxiliary arrays
- Optimizing the cell grid

### Preallocating the cell lists and cell list auxiliary arrays

The arrays containing the cell lists can be initialized only once, and then updated. This is useful for iterative runs. Note that, since the list size depends on the box size and cutoff, if the box properties changes some arrays might be increased (never shrink) on this update.

```
# Initialize cell lists with initial coordinates
cl = CellList(x,box)
# Allocate auxiliary arrays for threaded cell list construction
aux = CellListMap.AuxThreaded(cl)
for i in 1:nsteps
x = ... # new coordinates
box = Box(sides,cutoff) # perhaps the box has changed
UpdateCellList!(x,box,cl,aux) # modifies cl
map_pairwise!(...)
end
```

The procedure is identical if using two sets of coordinates, in which case, one would do:

```
cl = CellList(x,y,box)
aux = CellListMap.AuxThreaded(cl)
for i in 1:nsteps
x = ... # new coordinates
box = Box(sides,cutoff) # perhaps the box has changed
UpdateCellList!(x,y,box,cl,aux) # modifies cl
map_pairwise(...)
end
```

By passing the `aux`

auxiliary structure, the `UpdateCellList!`

functions will only allocate some minor variables associated to the launching of multiple threads and, possibly, to the expansion of the cell lists if the box or the number of particles became greater.

If the number of batches of threading is changed, the structure of auxiliary arrays must be reinitialized. Otherwise, incorrect results can be obtained.

### Preallocating threaded output auxiliary arrays

On parallel runs, note that `output_threaded`

is, by default, initialized on the call to `map_pairwise!`

. Thus, if the calculation must be run multiple times (for example, for several steps of a trajectory), it is probably a good idea to preallocate the threaded output, particularly if it is a large array. For example, the arrays of forces should be created only once, and reset to zero after each use:

```
forces = zeros(SVector{3,Float64},N)
forces_threaded = [ deepcopy(forces) for i in 1:nbatches(cl) ]
for i in 1:nsteps
map_pairwise!(f, forces, box, cl, output_threaded=forces_threaded)
# work with the final forces vector
...
# Reset forces_threaded
for i in 1:nbatches(cl)
@. forces_threaded[i] = zero(SVector{3,Float64})
end
end
```

In this case, the `forces`

vector will be updated by the default reduction method. `nbatches(cl)`

is the number of batches of the parallel calculation, which is defined on the construction of the cell list (see the **Parallelization** section).

### Optimizing the cell grid

The partition of the space into cells is dependent on a parameter `lcell`

which can be passed to `Box`

. For example:

```
box = Box(x,box,lcell=2)
cl = CellList(x,box)
map_pairwise!(...)
```

This parameter determines how fine is the mesh of cells. There is a trade-off between the number of cells and the number of particles per cell. For low-density systems, greater meshes are better, because each cell will have only a few particles and the computations loop over a smaller number of cells. For dense systems, it is better to run over more cells with less particles per cell. It is a good idea to test different values of `lcell`

to check which is the optimal choice for your system. Usually the best value is `lcell=1`

, because in `CellListMap`

implements a method to avoid spurious computations of distances on top of the cell lists, but for very dense systems, or for very large cutoffs (meaning, for situations in which the number of particles per cell may be very large), a greater `lcell`

may provide a better performance. It is unlikely that `lcell > 3`

is useful in any practical situation. For molecular systems with normal densities `lcell=1`

is likely the optimal choice. The performance can be tested using the progress meter, as explained below.

As a rough guide, `lcell > 1`

is only worthwhile if the number of particles per cell is greater than `~200-400`

.

The number of cells in which the particles will be classified is, for each dimension `lcell*length/cutoff`

. Thus if the `length`

of the box is too large relative to the `cutoff`

, many cells will be created, and this imposes a perhaps large memory requirement. Usually, it is a good practice to limit the number of cells to be not greater than the number of particles, and for that the cutoff may have to be increased, if there is a memory bottleneck. A reasonable choice is to use `cutoff = max(real_cutoff, length/n^(1/D))`

where `n`

is the number of particles and `D`

is the dimension (2 or 3). With that the number of cells will be close to `n`

in the worst case.

## Output progress

For long-running computations, the user might want to see the progress. A progress meter can be turned on with the `show_progress`

option. For example:

`map_pairwise!(f,output,box,cl,show_progress=true)`

will print something like:

`Progress: 43%|█████████████████ | ETA: 0:18:25`

Thus, besides being useful for following the progress of a long run, it is useful to test different values of `lcell`

to tune the performance of the code, by looking at the estimated time to finish (ETA) and killing the execution after a sample run. The default and recommended option for production runs is to use `show_progress=false`

, because tracking the progress introduces a small overhead into the computation.

## Some benchmarks

### Computing a histogram of pairwise velocities

The goal here is to provide a good implementation of cell lists. We compare it with the implementation of the nice cython/python halotools package, in the computation of an histogram of mean pairwise velocities.

The full test is available at this repository. And we kindly thank Carolina Cuesta for providing the example. These benchmarks were run on an Intel i7 8th gen laptop, with 4 cores (8 threads).

## Additional options

### Input coordinates as matrices

For compatibility with other software, the input coordinates can be provided as matrices. The matrices must have dimensions `(2,N)`

or `(3,N)`

, where `N`

is the number of particles (because Julia is column-major, thus this has the same memory layout of an array of length `N`

of static vectors).

For example:

```
julia> x = rand(3,100);
julia> box = Box([1,1,1],0.1);
julia> cl = CellList(x,box)
CellList{3, Float64}
100 real particles.
99 cells with real particles.
162 particles in computing box, including images.
julia> map_pairwise!((x,y,i,j,d2,n) -> n += 1, 0, box, cl) # count neighbors
23
```

## Docstrings

`CellListMap.Box`

— Method`Box(unitcell::Limits, cutoff; lcell::Int=1)`

This constructor receives the output of `limits(x)`

or `limits(x,y)`

where `x`

and `y`

are the coordinates of the particles involved, and constructs a `Box`

with size larger than the maximum coordinates ranges of all particles plus twice the cutoff. This is used to emulate pairwise interactions in non-periodic boxes. The output box is an `NonPeriodicCell`

box type, which internally is treated as Orthorhombic with boundaries that guarantee that particles do not see images of each other.

**Examples**

```
julia> using CellListMap, PDBTools
julia> x = coor(readPDB(CellListMap.argon_pdb_file));
julia> box = Box(limits(x), 10.0)
Box{NonPeriodicCell, 3}
unit cell matrix = [ 39.83 0.0 0.0; 0.0 39.96 0.0; 0.0 0.0 39.99 ]
cutoff = 10.0
number of computing cells on each dimension = [6, 6, 6]
computing cell sizes = [13.28, 13.32, 13.33] (lcell: 1)
Total number of cells = 216
julia> y = 1.2 .* x;
julia> box = Box(limits(x,y),10)
Box{NonPeriodicCell, 3}
unit cell matrix = [ 43.6 0.0 0.0; 0.0 43.76 0.0; 0.0 0.0 43.79 ]
cutoff = 10.0
number of computing cells on each dimension = [7, 7, 7]
computing cell sizes = [10.9, 10.94, 10.95] (lcell: 1)
Total number of cells = 343
```

`CellListMap.Box`

— Method`Box(unit_cell_matrix::AbstractMatrix, cutoff, lcell::Int=1, UnitCellType=TriclinicCell)`

Construct box structure given the cell matrix of lattice vectors. This constructor will always return a `TriclinicCell`

box type, unless the `UnitCellType`

parameter is set manually to `OrthorhombicCell`

**Examples**

Building a box with a triclinic unit cell matrix:

```
julia> using CellListMap
julia> unit_cell = [ 100 50 0
0 120 0
0 0 130 ];
julia> box = Box(unit_cell, 10.0)
Box{TriclinicCell, 3}
unit cell matrix = [ 100.0 0.0 0.0; 50.0 120.0 0.0; 0.0 0.0 130.0 ]
cutoff = 10.0
number of computing cells on each dimension = [20, 13, 16]
computing cell sizes = [10.0, 10.0, 10.0] (lcell: 1)
Total number of cells = 4160
```

Building a box with a orthorhombic unit cell matrix, from a square matrix:

```
julia> using CellListMap
julia> unit_cell = [ 100 0 0; 0 120 0; 0 0 150 ]; # cell is orthorhombic
julia> box = Box(unit_cell, 10.0, UnitCellType=OrthorhombicCell) # forcing OrthorhombicCell
Box{OrthorhombicCell, 3}
unit cell matrix = [ 100.0 0.0 0.0; 0.0 120.0 0.0; 0.0 0.0 150.0 ]
cutoff = 10.0
number of computing cells on each dimension = [13, 15, 18]
computing cell sizes = [10.0, 10.0, 10.0] (lcell: 1)
Total number of cells = 3510
```

`CellListMap.Box`

— Method`Box(sides::AbstractVector, cutoff, lcell::Int=1, UnitCellType=OrthorhombicCell)`

For orthorhombic unit cells, `Box`

can be initialized with a vector of the length of each side.

**Example**

```
julia> using CellListMap
julia> box = Box([120,150,100],10)
Box{OrthorhombicCell, 3}
unit cell matrix = [ 120.0 0.0 0.0; 0.0 150.0 0.0; 0.0 0.0 100.0 ]
cutoff = 10.0
number of computing cells on each dimension = [15, 18, 13]
computing cell sizes = [10.0, 10.0, 10.0] (lcell: 1)
Total number of cells = 3510
```

`CellListMap.unitcelltype`

— Method`unitcelltype(::Box{T}) where T = T`

Returns the type of a unitcell from the `Box`

structure.

**Example**

```
julia> using CellListMap
julia> box = Box([1,1,1], 0.1);
julia> unitcelltype(box)
OrthorhombicCell
julia> box = Box([1 0 0; 0 1 0; 0 0 1], 0.1);
julia> unitcelltype(box)
TriclinicCell
```

`CellListMap.map_pairwise`

— Function`map_pairwise(args...;kargs...) = map_pairwise!(args...;kargs...)`

is an alias for `map_pairwise!`

which is defined for two reasons: first, if the output of the funciton is immutable, it may be clearer to call this version, from a coding perspective. Second, the python interface through `juliacall`

does not accept the bang as a valid character.

`CellListMap.map_pairwise!`

— Method```
map_pairwise!(
f::Function,
output,
box::Box,
cl::CellList
;parallel::Bool=true,
show_progress::Bool=false
)
```

This function will run over every pair of particles which are closer than `box.cutoff`

and compute the Euclidean distance between the particles, considering the periodic boundary conditions given in the `Box`

structure. If the distance is smaller than the cutoff, a function `f`

of the coordinates of the two particles will be computed.

The function `f`

receives six arguments as input:

`f(x,y,i,j,d2,output)`

Which are the coordinates of one particle, the coordinates of the second particle, the index of the first particle, the index of the second particle, the squared distance between them, and the `output`

variable. It has also to return the same `output`

variable. Thus, `f`

may or not mutate `output`

, but in either case it must return it. With that, it is possible to compute an average property of the distance of the particles or, for example, build a histogram. The squared distance `d2`

is computed internally for comparison with the `cutoff`

, and is passed to the `f`

because many times it is used for the desired computation.

**Example**

Computing the mean absolute difference in `x`

position between random particles, remembering the number of pairs of `n`

particles is `n(n-1)/2`

. The function does not use the indices or the distance, such that we remove them from the parameters by using a closure.

```
julia> n = 100_000;
julia> box = Box([250,250,250],10);
julia> x = [ SVector{3,Float64}(sides .* rand(3)) for i in 1:n ];
julia> cl = CellList(x,box);
julia> f(x,y,sum_dx) = sum_dx + abs(x[1] - y[1])
julia> normalization = N / (N*(N-1)/2) # (number of particles) / (number of pairs)
julia> avg_dx = normalization * map_parwise!((x,y,i,j,d2,sum_dx) -> f(x,y,sum_dx), 0.0, box, cl)
```

`CellListMap.map_pairwise!`

— Method`map_pairwise!(f::Function,output,box::Box,cl::CellListPair)`

The same but to evaluate some function between pairs of the particles of the vectors.

`CellListMap.AuxThreaded`

— Method`AuxThreaded(cl::CellListPair{N,T}) where {N,T}`

Constructor for the `AuxThreaded`

type for lists of disjoint particle sets, to be passed to `UpdateCellList!`

for in-place update of cell lists.

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(3) for i in 1:50_000 ];
julia> y = [ 250*rand(3) for i in 1:10_000 ];
julia> cl = CellList(x,y,box);
julia> aux = CellListMap.AuxThreaded(cl)
CellListMap.AuxThreaded{3, Float64}
Auxiliary arrays for nthreads = 8
julia> UpdateCellList!(x,box,cl,aux)
CellList{3, Float64}
100000 real particles.
31190 cells with real particles.
1134378 particles in computing box, including images.
```

`CellListMap.AuxThreaded`

— Method`AuxThreaded(cl::CellList{N,T}) where {N,T}`

Constructor for the `AuxThreaded`

type, to be passed to `UpdateCellList!`

for in-place update of cell lists.

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(3) for _ in 1:100_000 ];
julia> cl = CellList(x,box);
julia> aux = CellListMap.AuxThreaded(cl)
CellListMap.AuxThreaded{3, Float64}
Auxiliary arrays for nthreads = 8
julia> UpdateCellList!(x,box,cl,aux)
CellList{3, Float64}
100000 real particles.
31190 cells with real particles.
1134378 particles in computing box, including images.
```

`CellListMap.CellList`

— Method```
CellList(
x::AbstractVector{<:AbstractVector},
y::AbstractVector{<:AbstractVector},
box::Box{UnitCellType,N,T};
parallel::Bool=true,
nbatches::Tuple{Int,Int}=(0,0),
autoswap::Bool=true,
validate_coordinates::Union{Function,Nothing}=_validate_coordinates
) where {UnitCellType,N,T}
```

Function that will initialize a `CellListPair`

structure from scratch, given two vectors of particle coordinates and a `Box`

, which contain the size of the system, cutoff, etc. By default, the cell list will be constructed for smallest vector, but this is not always the optimal choice. Using `autoswap=false`

the cell list is constructed for the second (`y`

)

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(SVector{3,Float64}) for i in 1:1000 ];
julia> y = [ 250*rand(SVector{3,Float64}) for i in 1:10000 ];
julia> cl = CellList(x,y,box)
CellListMap.CellListPair{Vector{SVector{3, Float64}}, 3, Float64}
10000 particles in the reference vector.
961 cells with real particles of target vector.
julia> cl = CellList(x,y,box,autoswap=false)
CellListMap.CellListPair{Vector{SVector{3, Float64}}, 3, Float64}
1000 particles in the reference vector.
7389 cells with real particles of target vector.
```

`CellListMap.CellList`

— Method```
CellList(
x::AbstractVector{AbstractVector},
box::Box{UnitCellType,N,T};
parallel::Bool=true,
nbatches::Tuple{Int,Int}=(0,0),
validate_coordinates::Union{Function,Nothing}=_validate_coordinates
) where {UnitCellType,N,T}
```

Function that will initialize a `CellList`

structure from scratch, given a vector or particle coordinates (a vector of vectors, typically of static vectors) and a `Box`

, which contain the size ofthe system, cutoff, etc. Except for small systems, the number of parallel batches is equal to the number of threads, but it can be tunned for optimal performance in some cases.

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(SVector{3,Float64}) for i in 1:100000 ];
julia> cl = CellList(x,box)
CellList{3, Float64}
100000 real particles.
15600 cells with real particles.
126276 particles in computing box, including images.
```

`CellListMap.UpdateCellList!`

— Method```
UpdateCellList!(
x::AbstractVector{<:AbstractVector},
y::AbstractVector{<:AbstractVector},
box::Box,
cl:CellListPair,
parallel=true,
validate_coordinates::Union{Function,Nothing}=_validate_coordinates
)
```

Function that will update a previously allocated `CellListPair`

structure, given new updated particle positions, for example. This method will allocate new `aux`

threaded auxiliary arrays. For a non-allocating version, see the `UpdateCellList!(x,y,box,cl,aux)`

method.

The `validate_coordinates`

function is called before the update of the cell list, and should throw an error if the coordinates are invalid. By default, this function throws an error if some coordinates are missing or are NaN. Set to `nothing`

to disable this check, or provide a custom function.

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(SVector{3,Float64}) for i in 1:1000 ];
julia> y = [ 250*rand(SVector{3,Float64}) for i in 1:10000 ];
julia> cl = CellList(x,y,box);
julia> UpdateCellList!(x,y,box,cl); # update lists
```

`CellListMap.UpdateCellList!`

— Method```
UpdateCellList!(
x::AbstractVector{<:AbstractVector},
box::Box,
cl:CellList;
parallel=true,
validate_coordinates::Union{Function,Nothing}=_validate_coordinates
)
```

Function that will update a previously allocated `CellList`

structure, given new updated particle positions. This function will allocate new threaded auxiliary arrays in parallel calculations. To preallocate these auxiliary arrays, use the `UpdateCellList!(x,box,cl,aux)`

method instead.

The `validate_coordinates`

function is called before the update of the cell list, and should throw an error if the coordinates are invalid. By default, this function throws an error if some coordinates are missing or are NaN. Set to `nothing`

to disable this check, or provide a custom function.

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(SVector{3,Float64}) for i in 1:1000 ];
julia> cl = CellList(x,box);
julia> box = Box([260,260,260],10);
julia> x = [ 260*rand(SVector{3,Float64}) for i in 1:1000 ];
julia> UpdateCellList!(x,box,cl); # update lists
```

`CellListMap.UpdateCellList!`

— Method```
UpdateCellList!(
x::AbstractVector{<:AbstractVector},
y::AbstractVector{<:AbstractVector},
box::Box,
cl_pair::CellListPair,
aux::Union{Nothing,AuxThreaded};
parallel::Bool=true,
validate_coordinates::Union{Function,Nothing}=_validate_coordinates
)
```

This function will update the `cl_pair`

structure that contains the cell lists for disjoint sets of particles. It receives the preallocated `aux`

structure to avoid reallocating auxiliary arrays necessary for the threaded construct of the lists.

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(3) for i in 1:50_000 ];
julia> y = [ 250*rand(3) for i in 1:10_000 ];
julia> cl = CellList(x,y,box)
CellListMap.CellListPair{Vector{SVector{3, Float64}}, 3, Float64}
50000 particles in the reference vector.
7381 cells with real particles of target vector.
julia> aux = CellListMap.AuxThreaded(cl)
CellListMap.AuxThreaded{3, Float64}
Auxiliary arrays for nthreads = 8
julia> x = [ 250*rand(3) for i in 1:50_000 ];
julia> y = [ 250*rand(3) for i in 1:10_000 ];
julia> UpdateCellList!(x,y,box,cl,aux)
CellList{3, Float64}
10000 real particles.
7358 cells with real particles.
12591 particles in computing box, including images.
```

To illustrate the expected ammount of allocations, which are a consequence of thread spawning only:

```
julia> using BenchmarkTools
julia> @btime UpdateCellList!($x,$y,$box,$cl,$aux)
715.661 μs (41 allocations: 3.88 KiB)
CellListMap.CellListPair{Vector{SVector{3, Float64}}, 3, Float64}
50000 particles in the reference vector.
7414 cells with real particles of target vector.
julia> @btime UpdateCellList!($x,$y,$box,$cl,$aux,parallel=false)
13.042 ms (0 allocations: 0 bytes)
CellListMap.CellListPair{Vector{SVector{3, Float64}}, 3, Float64}
50000 particles in the reference vector.
15031 cells with real particles of target vector.
```

`CellListMap.UpdateCellList!`

— Method```
UpdateCellList!(
x::AbstractVector{<:AbstractVector},
box::Box,
cl::CellList{N,T},
aux::Union{Nothing,AuxThreaded{N,T}};
parallel::Bool=true,
validate_coordinates::Union{Function,Nothing}=_validate_coordinates
) where {N,T}
```

Function that updates the cell list `cl`

new coordinates `x`

and possibly a new box `box`

, and receives a preallocated `aux`

structure of auxiliary vectors for threaded cell list construction. Given a preallocated `aux`

vector, allocations in this function should be minimal, only associated with the spawning threads, or to expansion of the cell lists if the number of cells or number of particles increased.

**Example**

```
julia> box = Box([250,250,250],10);
julia> x = [ 250*rand(SVector{3,Float64}) for i in 1:100000 ];
julia> cl = CellList(x,box);
julia> aux = CellListMap.AuxThreaded(cl)
CellListMap.AuxThreaded{3, Float64}
Auxiliary arrays for nthreads = 8
julia> x = [ 250*rand(SVector{3,Float64}) for i in 1:100000 ];
julia> UpdateCellList!(x,box,cl,aux)
CellList{3, Float64}
100000 real particles.
15599 cells with real particles.
125699 particles in computing box, including images.
```

To illustrate the expected ammount of allocations, which are a consequence of thread spawning only:

```
julia> using BenchmarkTools
julia> @btime UpdateCellList!($x,$box,$cl,$aux)
16.384 ms (41 allocations: 3.88 KiB)
CellList{3, Float64}
100000 real particles.
15599 cells with real particles.
125699 particles in computing box, including images.
julia> @btime UpdateCellList!($x,$box,$cl,$aux,parallel=false)
20.882 ms (0 allocations: 0 bytes)
CellList{3, Float64}
100000 real particles.
15603 cells with real particles.
125896 particles in computing box, including images.
```

`CellListMap.nbatches`

— Method`nbatches(cl)`

Returns the number of batches for parallel processing that will be used in the pairwise function mappings associated to cell list `cl`

. It returns the `cl.nbatches.map_computation`

value. This function is important because it must be used to set the number of copies of custom preallocated output arrays.

A second argument can be provided, which may be `:map`

or `:build`

, in which case the function returns either the number of batches used for pairwise mapping or for the construction of the cell lists. Since this second value is internal and does not affect the interface, it can be usually ignored.

**Example**

```
julia> x = rand(3,1000); box = Box([1,1,1],0.1);
julia> cl = CellList(x,box,nbatches=(2,16));
julia> nbatches(cl)
16
julia> nbatches(cl,:map)
16
julia> nbatches(cl,:build)
2
```

`CellListMap.limits`

— Method`limits(x,y; validate_coordinates::Union{Nothing, Function})`

Returns the lengths of a orthorhombic box that encompasses all the particles defined in `x`

and `y`

, to used to set a box without effective periodic boundary conditions.

The `validate_coordinates`

function is used to validate the coordinates of the particles. By default, it will throw an error if any of the coordinates contain `NaN`

or `missing`

values. To disable this validation, set `validate_coordinates = nothing`

. Custom checks can be implemented by passing a function that takes the coordinates as input and throws an error if the coordinates are invalid.

`CellListMap.limits`

— Method`limits(x; validate_coordinates::Union{Nothing,Function})`

Returns the lengths of a orthorhombic box that encompasses all the particles defined in `x`

, to be used to set a box without effective periodic boundary conditions.

The `validate_coordinates`

function is used to validate the coordinates of the particles. By default, it will throw an error if any of the coordinates contain `NaN`

or `missing`

values. To disable this validation, set `validate_coordinates = nothing`

. Custom checks can be implemented by passing a function that takes the coordinates as input and throws an error if the coordinates are invalid.
